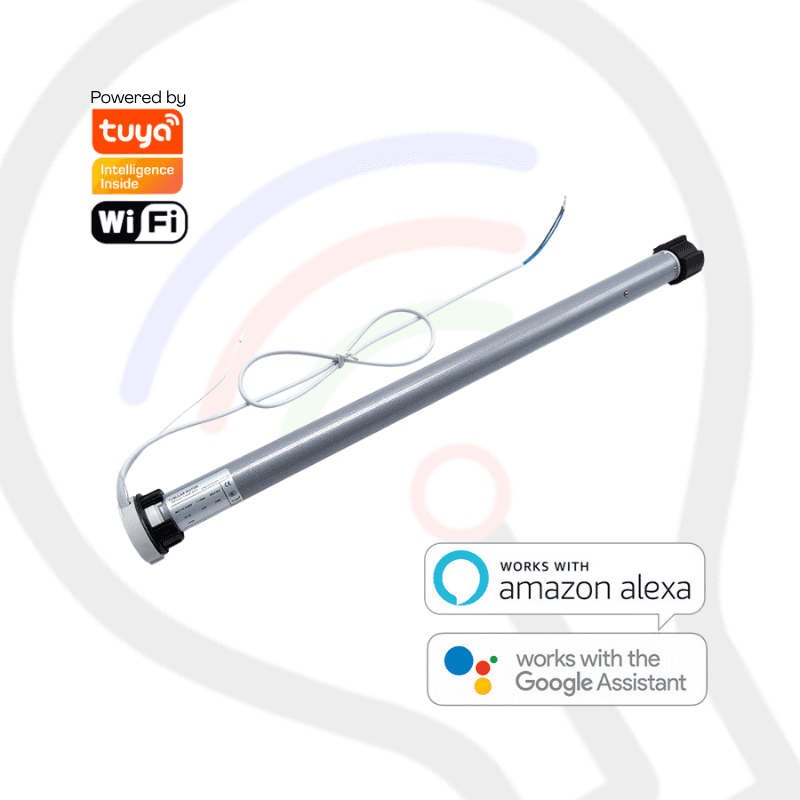

Tuya Wi-Fi Tubular Motor for Roller Shades

This Tuya Wi-Fi tubular motor fits inside a roller shade tube to raise and lower it automatically, for homes, offices, and hotel rooms that want quiet, hidden blind motors. It is controlled from the Tuya or Smart Life app, by schedule, or with a 433.92 MHz remote.

It delivers 1.1 Nm of torque at 28 rpm, suited to standard roller shades, and uses soft start and soft stop for smooth, quiet movement that is gentle on the fabric. It runs on AC 100–240 V with a rated power of 12 W.

The motor is 28 mm in diameter (model GM25TEQ-TV-1.1/28).

It is hardwired, so it needs a power point at the window. We check your blind tube size, fit the motor, run the power, set the limits, and add it to the app. A Zigbee version is also available.
