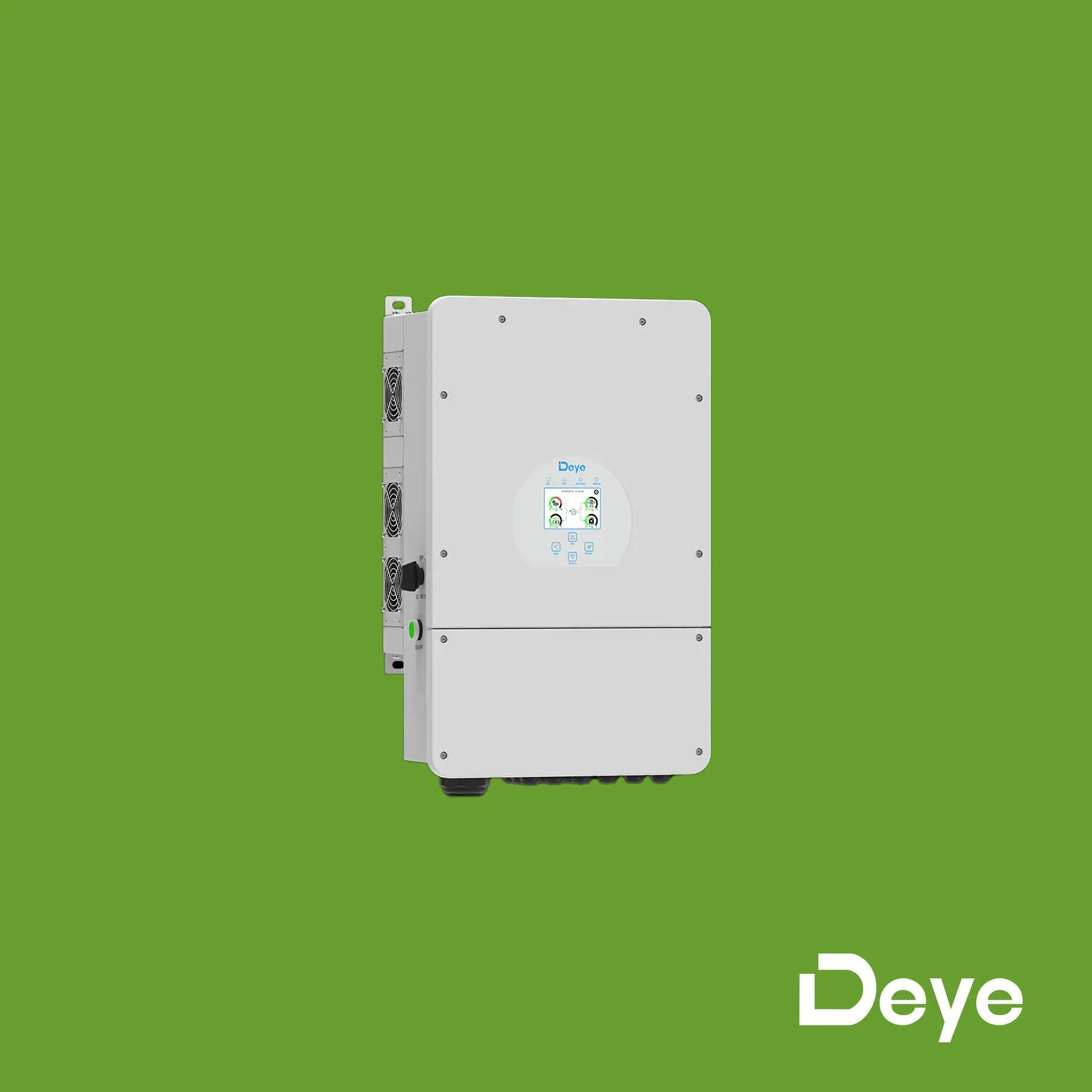

Deye SUN-12K-SG02LP1-EU-AM3 12kW Single-Phase Hybrid Inverter (48 V)

The SUN-12K-SG02LP1-EU-AM3 is a 12 kW single-phase hybrid inverter from Deye for large homes, offices, clinics, and small businesses that run on solar, battery, and grid or generator. It works with 48 V (40–60 V) lead-acid or lithium batteries and adapts its charging to the lithium battery's BMS.

Its standout figure is a 250 A maximum charge and discharge current, which lets a lithium bank deliver the inverter's full output and recharge quickly from solar during the day. Solar inputs start from 125 V and track between 150 and 425 V, so panels can be wired in shorter strings.

Like other Deye hybrids, it can store energy from a diesel generator, use grid power when available, and be monitored through Deye's app. It suits sites that want the power of a small three-phase system while staying on a single-phase supply.

We size the inverter, battery bank, and solar array to your actual loads and backup hours, and handle the installation, earthing, and surge protection.
